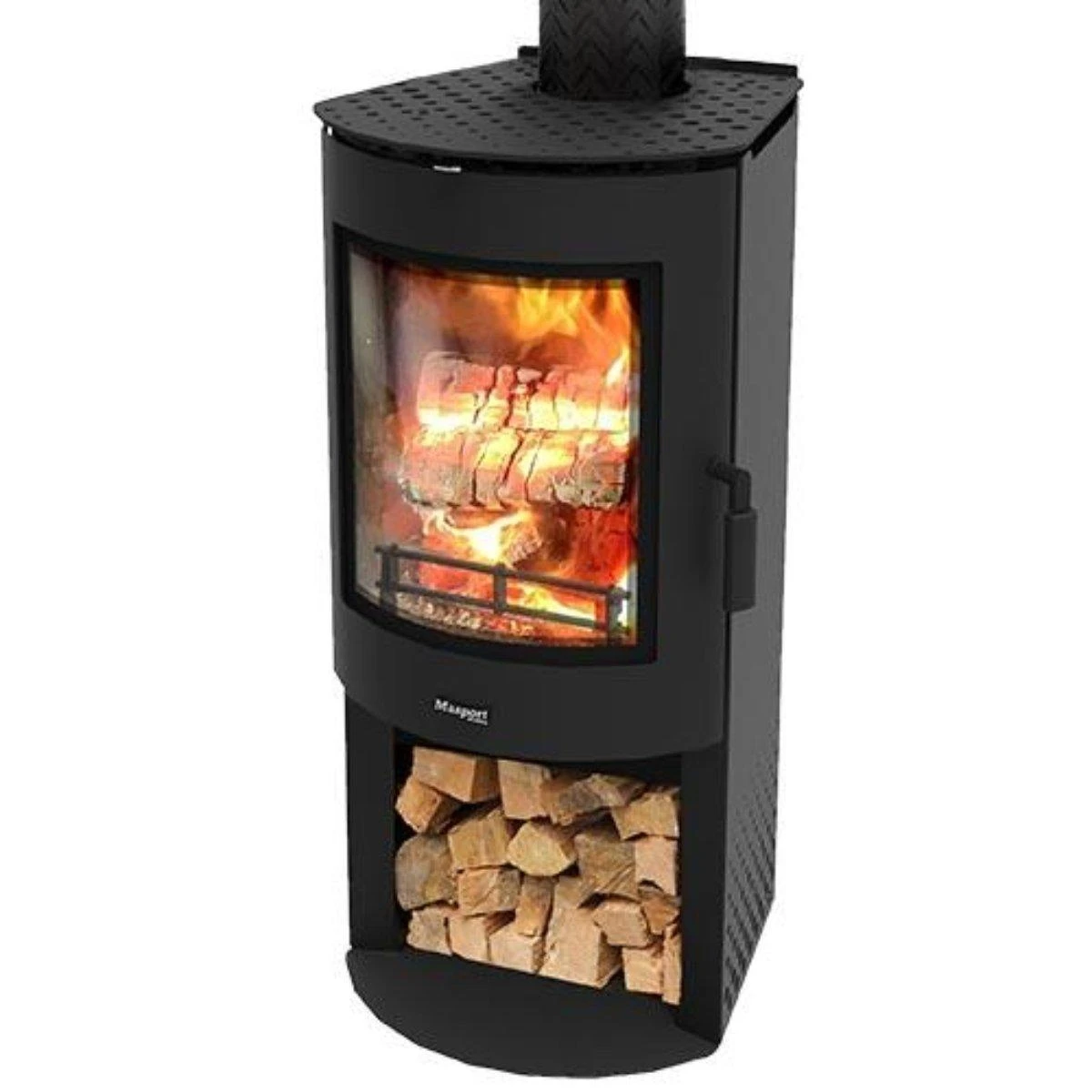

Masport Adena Wood Stacker Freestanding Wood Fire

Description

The ADENA WOODSTACKER adds convenience to an already sleek, curved design fitting of today’s modern home. This radiant fire will not only make a statement, but also keep your home warm while offering a convenient storage for your firewood.

Features:

• Designed to heat small to medium sized areas – up to 162m2
• 6mm radiant cooktop
• 6mm, durable steel firebox
• Lined with ceramic fire bricks and a steel baffle for efficient burning
• Handy storage space for wood
• Available without wood stacker (Check other Adena Model)
• 10-year extensive firebox warranty under normal use and service
• 1-year warranty on all internal fire parts
• Made and designed in New Zealand

Specifications

Specifications:

Finish	VHT Black
Firebox Material	Steel
Est. Peak Output	16.2kW
Approx. Heat Area	162 sq. metres
Emissions	1g/kg
Efficiency	60%
Circulation	Radiant
Log Size	290mm

Dimensions:

481mm (W) x 536mm (D) x 1025mm (H)

Firebox: 265mm (W) x 325mm (D) x 410mm (H)

Clearance

The Masport Adena Freestanding Wood Fire now comes with a Rear Heat Shield and a Flue Shield, allowing for improved clearance.

Clearance for the Adena Fireplace is:
Rear: 120mm
Side: 400mm
Corner: 180mm

Manuals

Manuals:

Masport Adena Woodstacker Spec Sheet.pdf

Masport Wood Fire Installation Manual.pdf

Masport Wood Fire Owners Manual.pdf

Masport Installation Instructions for Adena Flue Shield.pdf

Masport Installation Instructions for Rear Heat Shield.pdf

Flue Options

To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward, vertical, single-storey applications. Depending on your site specifics you may also need a hearth, or other components that aren’t available on our website.

We have heater experts available in store to give advice for wood heater installations, so if you have any questions call 1300 300 227 or drop into your local outlet.

Standard Flue Kit	Includes
SWH-6101	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 2 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 6” black painted SS flue lengths · SS half shield
SWH-6136	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 4 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 8” black painted SS mesh flue length

Standard Flashing	Suits
DFE108B	Metal roof, 170-355mm external flue
DNL108B	Tile roof, 175-300mm external flue
