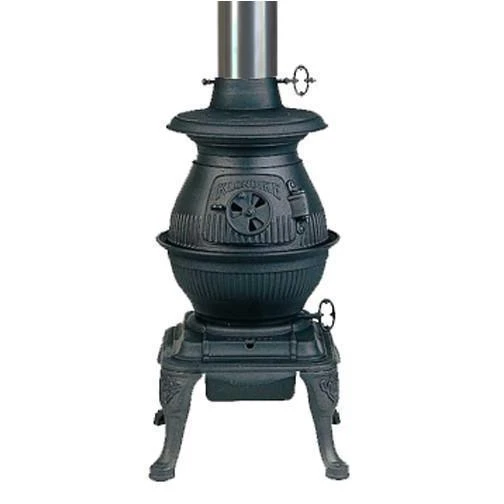

Masport Klondike Potbelly Stove

Description

The classic, North American styling of the Klondike makes it an attractive eye catcher and will give you a cosy, secure glow to any room.

Features:

• Designed to heat medium to large sized areas – up to 100m2
• Radiant circulation
• Efficient cooktop for cooking or boiling water
• Finished in rugged black cast iron
• Ashpan and grate for convenient cleaning
• 10-year extensive firebox warranty under normal use and service
• 1-year warranty on all internal fire parts
• Designed in New Zealand

Specifications:

Finish	Black
Firebox Material	Cast Iron
Est. Peak Output	10kW
Approx. Heat Area	100 sq. metres
Emissions	1.3g/kg
Efficiency	67%
Circulation	Radiant
Log Size	250mm

Dimensions:

380mm (W) x 460mm (D) x 650mm (H)

Manuals:

Masport Klondike Specification Sheet

Masport Wood Fire Installation Manual

Masport Wood Fire Owners Manual

Flue Options

To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward, vertical, single-storey applications.

The Masport Klondike and Pittsburgh Wood Fires require a non-standard 4.5″ active flue which can be ordered over the phone or in store.

Depending on your site specifics you may also need a hearth, or other components that aren’t available on our website.

We have heater experts available in store to give advice for wood heater installations, so if you have any questions call 1300 300 227 or drop into your local outlet.

Standard Flue Kit	Includes
SWH-6101	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 2 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 6” black painted SS flue lengths · SS half shield
SWH-6136	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 4 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 8” black painted SS mesh flue length

Standard Flashing	Suits
DFE108B	Metal roof, 170-355mm external flue
DNL108B	Tile roof, 175-300mm external flue
