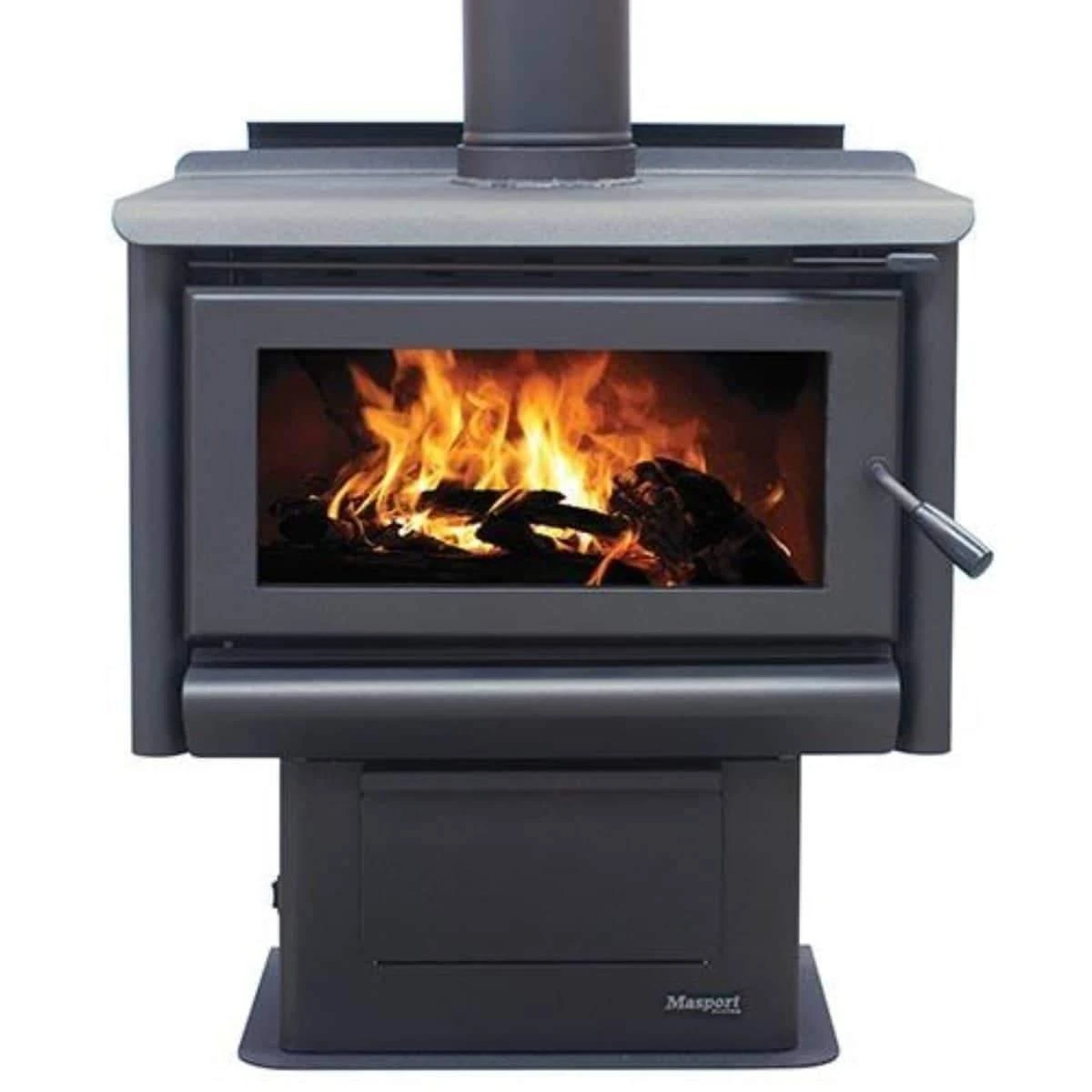

Masport Riverstone Wood Fire

Description

The Riverstone wood fire is the perfect heating solution for small and medium rooms. Its large 8mm radiant top plate can be used for cooking, and its built-in ashpan ensures that disposal of ash is as easy and convenient as possible.

Features:

• Designed to heat small to medium sized areas – up to 190m2
• Large 8mm radiant cook top
• 6mm, durable steel firebox
• Lined with masonry fire bricks and a steel baffle for efficient burning
• Built-in ashpan for easier ash disposal
• Optional 2-speed fan for convection heating
• 10-year extensive firebox warranty under normal use and service
• 1-year warranty on all internal fire parts
• Made and designed in New Zealand

Specifications

Specifications:

Finish	VHT Black
Firebox Material	Steel
Est. Peak Output	19kW
Approx. Heat Area	190 sq. metres
Emissions	1.3g/kg
Efficiency	60%
Circulation	Optional 2-speed convection fan
Log Size	400mm

Dimensions:

700mm (W) x 576mm (D) x 720mm (H)

Firebox Dimensions: 450mm (W) x 389mm (D) x 323mm (H)

Manuals

Masport Riverstone Wood Fire Installation Specifications

Masport Riverstone Wood Fire Spec Sheet

Masport Wood Fire Installation Manual

Masport Wood Fire Owners Manual

Flue Options

To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward, vertical, single-storey applications. Depending on your site specifics you may also need a hearth, or other components that aren’t available on our website.

We have heater experts available in store to give advice for wood heater installations, so if you have any questions call 1300 300 227 or drop into your local outlet.

Standard Flue Kit	Includes
SWH-6101	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 2 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 6” black painted SS flue lengths · SS half shield
SWH-6136	· Anti-down draught hat SS · 2 x 10” galvanised flue lengths · 2 x 8” galvanised flue lengths · 4 x 6” SS flue lengths · 10” ceiling ring galvanised · 2 x 8” black painted SS mesh flue length

Standard Flashing	Suits
DFE108B	Metal roof, 170-355mm external flue
DNL108B	Tile roof, 175-300mm external flue

Standard Flashing	Suits
DFE108B	Metal roof, 170-355mm external flue
DNL108B	Tile roof, 175-300mm external flue
