Nectre N900IB Zero Clearance Inbuilt Fireplace

Description

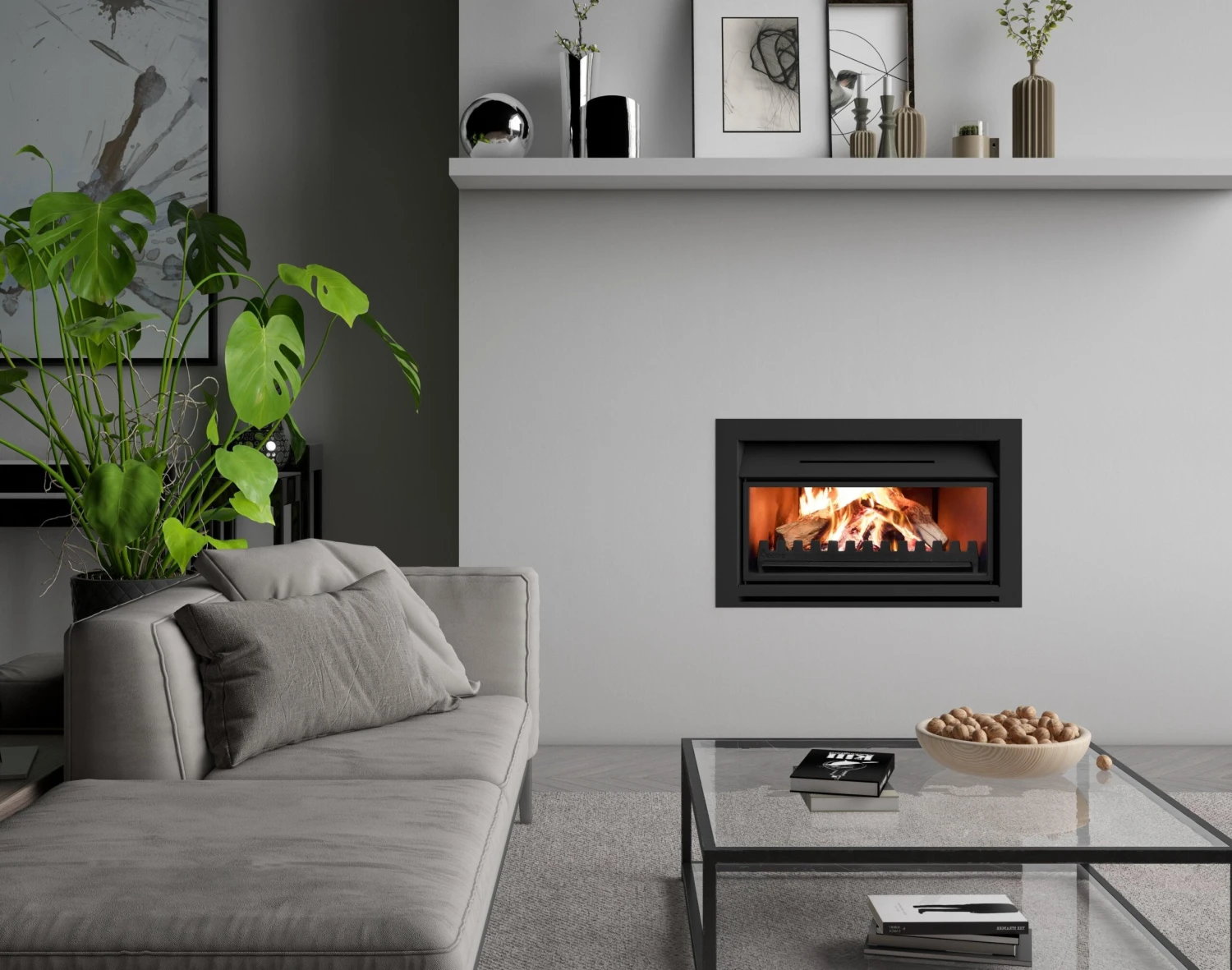

Nectre’s largest heater yet encapsulating the beauty of an open flame. Nectre has designed this fire to impress. The Nectre N900 is easily the perfect choice for inside the home.

• Inbuilt wood fireplace
• Can be indoor or under covered alfresco
• Large open fire
• 3 speed remote controlled fan
• Includes specialized flue kit

Specifications

Heat Output	15kW
Approximate Heating Area	Up to 100m2
Maximum log width	600mm
Dimensions	830w x 355d x 310h (mm)
Weight	Up to 250kg





Heater Clearances

The dimensions given in the table and image below represent the minimum clearance (in mm) to combustible materials, such as a mantelpiece with columns, when installed in a non-combustible fireplace.

A – 1335mm (Width between mantelpiece columns)
B – 1400mm (Height to mantelpiece from hearth)
C – 750mm (Height to mantelpiece from appliance)
D – 550mm (Distance to side wall)



Manuals

N900 Installation Instructions.docx

N900 Operating Instructions.docx
