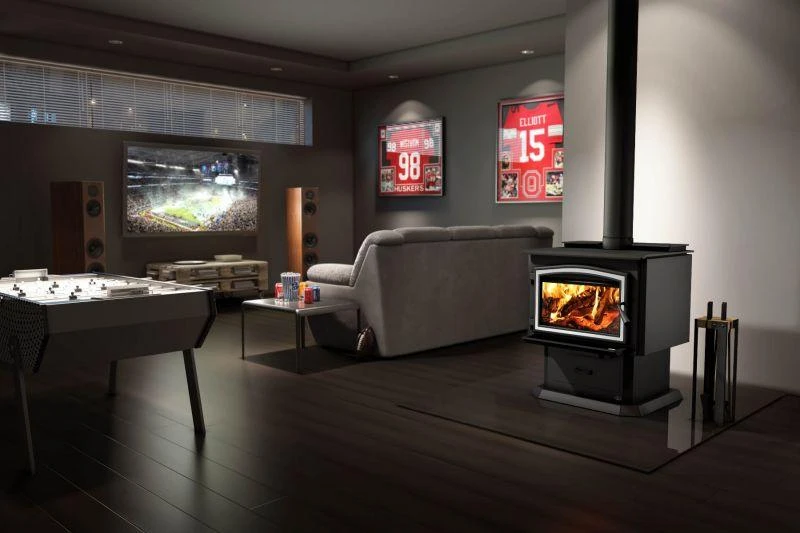

Osburn 3500 Freestanding Woodheater

Specifically designed to face the rigor of winter, the Osburn 3500 is an essential for any spacious home, especially in harsh weather conditions.

Despite its emissions as 2.3 g/h, this wood stove utilizes a user-friendly, non-catalytic technology as well as a significant reduction of fuel consumption.

The unit features a firebox that can hold up to 23 kg of cordwood, as well as a blower, a thermodisc and an airmate for optimal heat distribution and unparalleled comfort.

Features:

• High-efficiency EPA certified stove.
• Ultra-quiet 130 CFM blower with variable speed control.
• Baffle has a high heat-resistant C-cast.
• Firebox lined with refractory bricks for better heat distribution.
• Stainless-steel secondary-air system for improved gas combustion.
• Constant view of the fire.
• Adjustable handle.
• Glass air-wash system.



Specifications

Optimum Efficiency	77%
Average Particulate Emissions	1.6 g/kg
Steel Thickness – Top	8mm
Maximum Log Length	558mm
Heating Capacity	260 Square Metres
Fuel Type	Dry Cordwood
Door Materials	Glass with Cast Iron Frame
Glass Type	Ceramic Glass
Glass Air-Wash System	Yes
Firebox	Lined with Refractory Bricks
Model	Pedestal



Dimensions:

733mm (W) x 850mm (D) x 883mm (H)

Firebox: 581mm (W) x 511mm (D) x 327mm (H)

Weight: 238kg



Manuals:

Osburn 3500 Operation and Installation Manual.pdf
